Track Mount Rigs

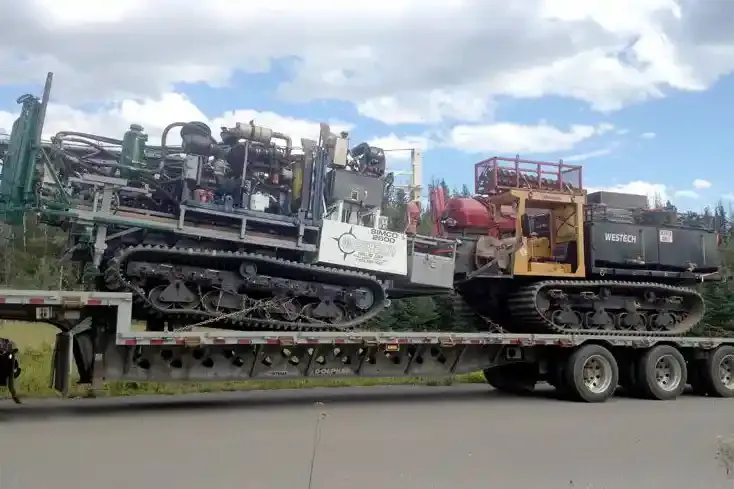

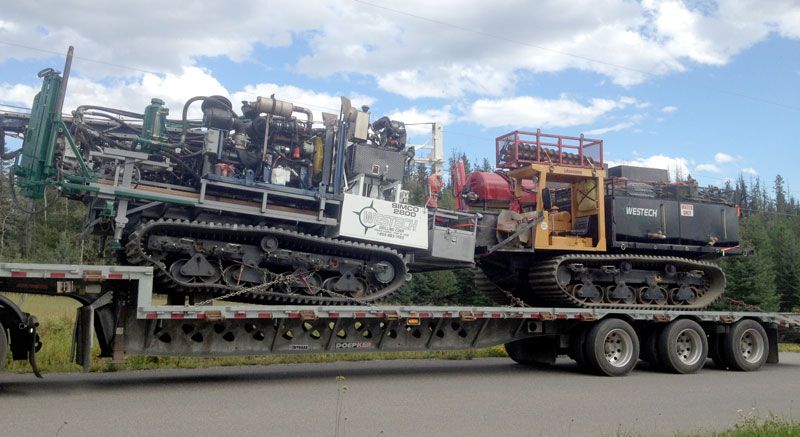

E SIMCO 2800
Track Mount Drill
| Drillhead Torque | 7,500 ft lbs 4-Speed |
|---|---|
| Drillhead RPM | 0-670 RPM |
| Pullback | 12,000 lbs |
| Push Down | 12,000 lbs |
| Main Winch | 4,500 lbs |
| Auxiliary Winch | 2,550 lbs |
| Drillhead Travel - Net Stroke | 11’ |
| Optional Wireline Winch | 1,300 lbs |

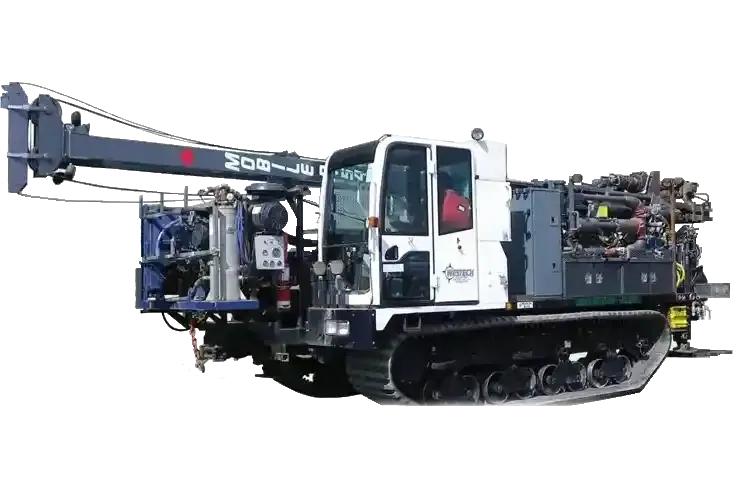

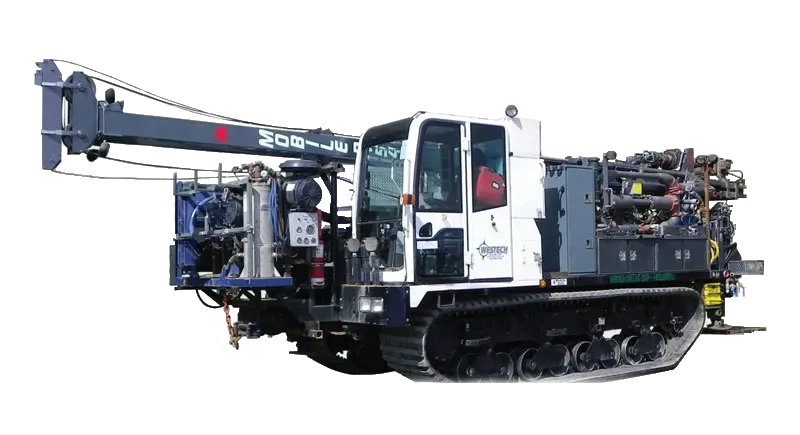

B54
Mobile Drill
Factory Drilling Capacities and Methods:
- Diamond Core Drilling ~365 M
- Rotary Drilling ~450M
- Hollow Stem Auger ~45M
- Continuous Flight Auger ~90M

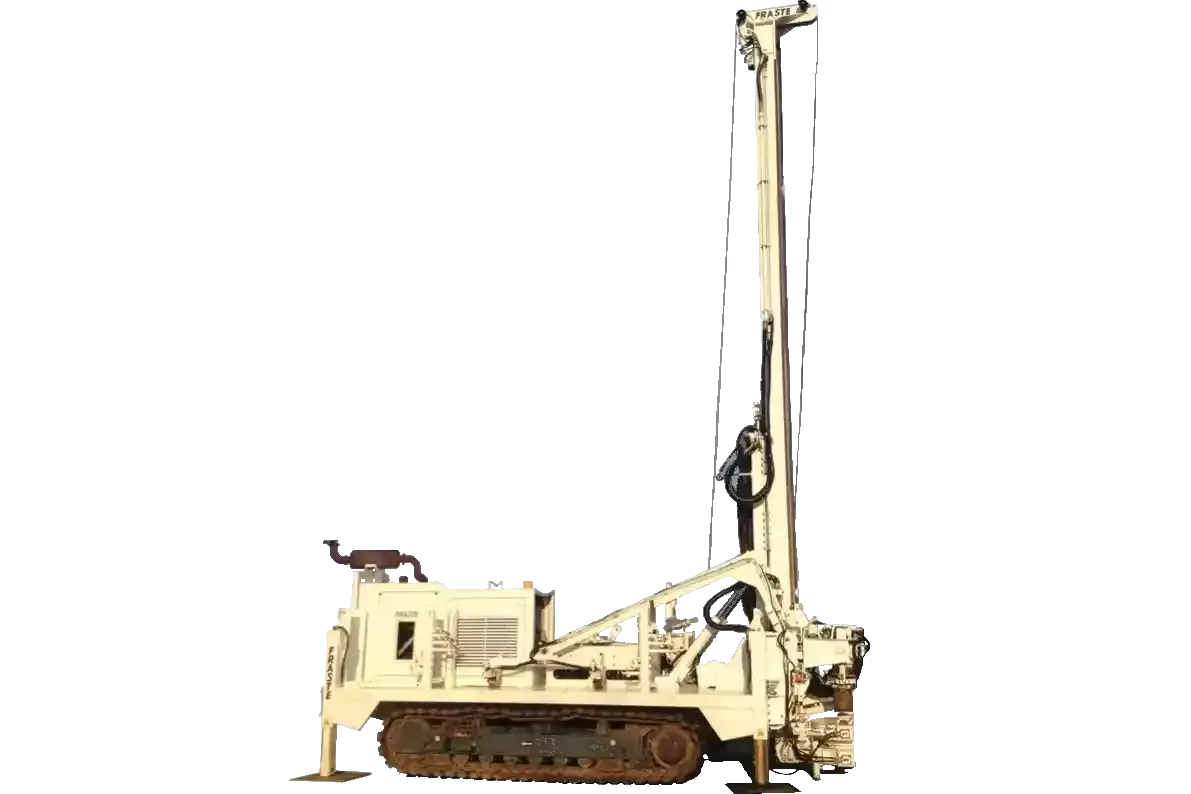

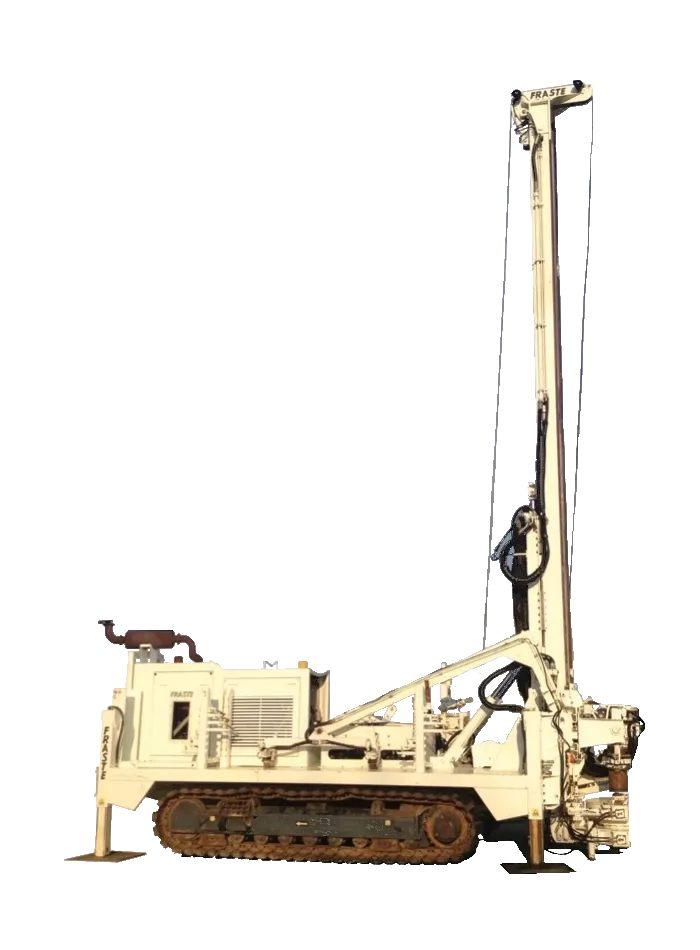

Fraste FS 250
Track MT Drill Rig
Drilling Capacities and Methods:
- Diamond Core Drilling ~487 M
- Air Rotary Drilling ~457M
- Mud Rotary ~400M

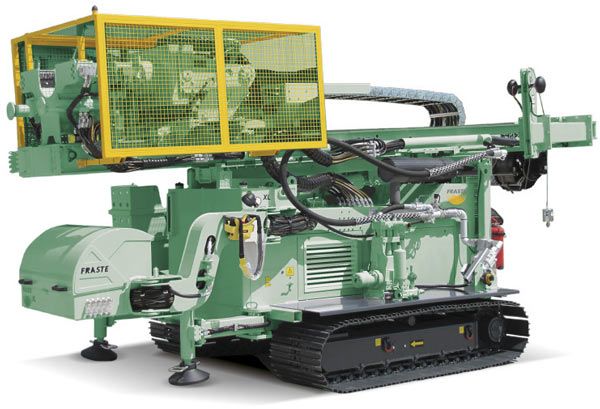

Fraste MDXL
| Drillhead Torque | 12,981 ft lbf 2/4-Speeds |
|---|---|
| Drillhead RPM | 1,330 RPM |
| Pullback | 17,985 lbs |
| Push Down | 15,287 lbs |
